How To Use Manual Lensometer

May 25, 2024 Post a Comment

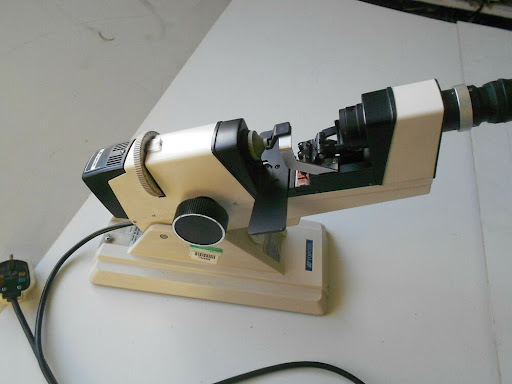

How to use manual lensometer

First step: Rotate diopter measuring handwheel so that the torus (composed of 12 small green dots) is imaged into clear looped short cylindrical lines. Then rotate the astigmatic axis measuring handwheel again so that the spherical marking line (two green lines) and torus short lines are in the same direction.

What is the principle of manual lensometer How does it work?

The lensometer works on the Badal principle with the addition of an astronomical telescope for precise detection of parallel rays at neutralization. The Badel principle is Knapp's law applied to lensometers.

What is manual lensometer?

manual lensmeterML1 The Reichert ML1 Manual Lensometer enables you to measure a variety of lenses accurately including single vision, bifocal and contact lenses.

How do you read lenses on a lensometer?

Power drum is a two-step process step one get good crisp sphere lines. Look at the power that is

How does a manual lensometer measure a prism?

So this is one prism this is two prisms this is three presumes. Right so you tell me what's the

What is the first step in reading single vision lens with an auto lensometer?

the first step to reading cylinder lenses: The distance correction is measured first. Once the lens is in place, look through the eyepiece and adjust the power wheel and the axis wheel until one or more of the mires comes into focus.

How do you focus a lensometer?

turning the eyepiece counterclockwise to the most plus setting and then slowly turning the eyepiece clockwise towards the minus until the reticle comes into focus.

How accurate is a lensometer?

One hundred forty-six lenses from 11 manufactures were tested with the Veri-Vu lensometer and optical power plus resolution compared with results from an optical bench. Accuracy was found to be +/- 0.2 diopter in 95% of the lenses tested.

How many types of lensometer are there?

There are two types of lensometers: manual lensometer and automated lensometer. Automated lensometer can accurately measure all types of lenses including: single vision, bifocal, progressive, and prism. Automated Lensometers are mostly used in completely different environments such as factories and shops.

How do I check my power specs?

Option #1: Use a Printable Diopter Reading Test Card With the printed sheet 14″ away, attempt to read the top line without reading glasses. Continue down the chart until you find a line you can read clearly without your glasses on – this is the diopter (power/magnification) you need.

What is the use of the eyepiece in lensometer?

lensometer working principle: The light rays emerging from the spectacle lens then pass into an eyepiece having an internal reticle. The target is axially shifted simultaneously by the user until it is in focus with the reticle.

How do you find the optical center of a lens?

What is Optical Center and How Do I Measure It to Purchase Prescription Eyeglasses Online? Stand in front of a life size mirror and look directly at the tip of your nose. The positioning of your pupils inside your eye sockets is your Natural Optical Center.

What does the lensometer not measure?

The lensmeter does not measure the focal length of the unknown lens. It measures the vertex power, which is the reciprocal of the distance between the back surface of the lens and its secondary focal point; this distance is known as theback focal length.

How do I know if my lenses are progressive?

Progressive lenses often require more head movement since the sides of the lenses are blurred.

Distance: Look at an object at least 20 feet away.
Intermediate: Hold an object or sit at a computer about an arm's length away. ...
Reading: Hold an object like a book similar to how you would when reading.

How do you read a lensometer progressive?

Taking in the lenses. So this is how you can take the lens measurement from the lensometer.

How do you calculate prism in glasses?

The formula used to calculate the amount of prism is called Prentice's Rule. The formula for Prentice's Rule is: Prism (diopters) = Power (diopters) X Decentration (centimeters). Prentice's Rule can be used to create prism in a lens. As opticians, we are trained to optimize a patient's vision.

How do you read a prism?

A prism has no focusing power but changes the direction of light rays passing through. Rays of light enter a prism and bend toward the base, while objects viewed through a prism are displaced toward the apex.

What is base direction on glasses?

The base indicates where the thickest edge of the prism will be: BU (for base up), BD (for base down), BI (for base in toward the nose), or BO (for base out toward the ears). The base direction tells you where the prism will redirect light.

How do you read a bifocal on a lensometer?

Rotate my power drum as much as I need to rotate. My axis wheel as much as I need to make sure I -

How do you read glasses in a minus cylinder?

This indicates the amount of lens power, measured in diopters (D), prescribed to correct nearsightedness or farsightedness. If the number appearing under this heading has a minus sign (–), you are nearsighted; if the number has a plus sign (+) or is not preceded by a plus sign or a minus sign, you are farsighted.
